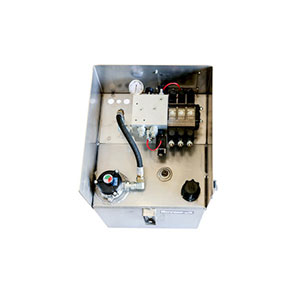

CENTRAL HYDRAULIC SYSTEM 4 FUNC,15 GAL,W/GPS

Product Details

CENTRAL HYDRAULIC SYSTEM 4 FUNCTION 15 GALLON WITH/GPS

• Reservoir Volume 15 Gal
• Reservoir Material 304 Stainless Steel
• Reservoir Mount Position Side Mount

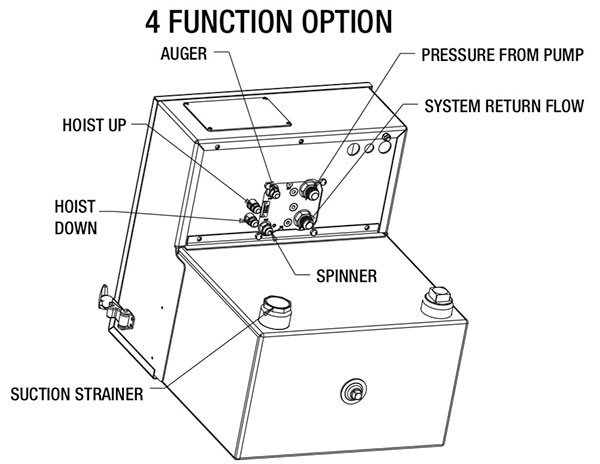

• Number Of Functions Supported 4
• Hoist Action Power Up/Power Down - 1 Port Relief
• Plow Action Power Up/Power Down
• Spreader Control Included? Yes
• Spreader Control Type Electric Over Hydraulic
• Spreader Controller HVC05
• Plow Control Included? Yes
• Plow Control Type Electric
• Hoist Control Included? Yes
• GPS Capable? Yes
• GPS Included? Yes
• Oil Level/Temperature Gauge Included? Yes
• Inlet Port 3/4 SAE ORB (-12)
• Work Ports 1/2 SAE ORB (-8)
• Outlet Port 2 NPT
• Suction Port 3/4 SAE ORB (-12)
• Auger/Chain Port 1/2 SAE ORB (-8)
• Spinner Port 1/2 SAE ORB (-8)
• Main Relief Setting 1500 PSI
• Port Relief Hoist 500 PSI
• Port Relief Angle 1500 PSI
• Maximum Flow Rate 28 GPM
• Maximum Pressure 3000 PSI
• Return Line Filter Included? Yes
• Return Line Filter Flow Rating 26 GPM
• Return Line Filter Rating 25 µm
• Suction Filter Included? Yes
• Suction Filter Flow Rating 49 GPM
• Suction Filter Rating 150 µm
• Magnetic Drain Plug Yes

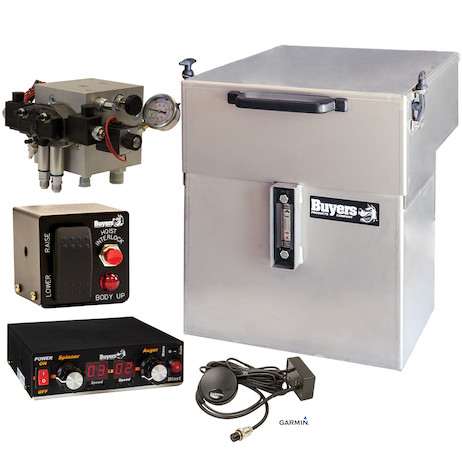

Systems Include:

Proportional spreader operation with compact 2-function or 3-function (auger-conveyor, spinner and pre-wet included with GPS versions) controls. 11 GPM, 3-way plow lift/4-way plow angle with two port reliefs and 4-way DA dump hoist with down port relief and power beyond. LED display, indexed dials, plow switch with detents to provide float in the down position, proportional spreader and auger speed control, 30 GPM adjustable flow divider valve.
