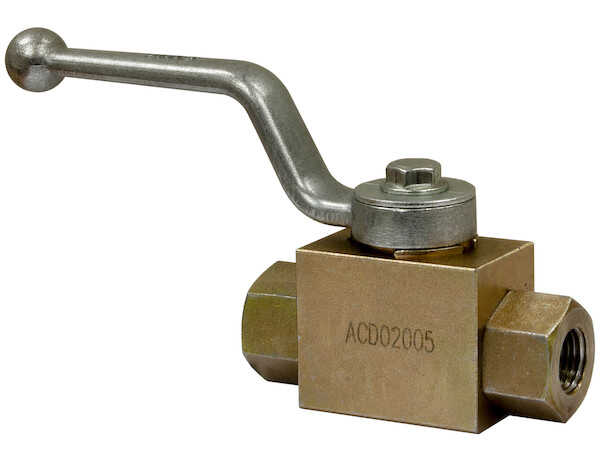

HBVS025 BALL VALVE 1/4 7250 PSI

PRODUCT DESCRIPTION:

Ball Valve 2 Port 1/4in
HBVS025
For control of air, water, oil and gas in hose or pipe lines.

PRODUCT SPECIFICATIONS:

Pressure Rating: 7250 PSI
Valve Size 1/4in
Ports: 3
Thread: 1/4 NPTF
For Dimensions please refer Image
A 1.02in
B 0.24in
C 4.21in
D 1.20in
E 1.26in
F 2.72in

The 2 Port High Pressure Ball Valve from Buyers Products reliably controls the flow of fluids in your truck's hydraulic system. It's made to withstand very high pressures without failing.
The valve has a stem that will not blow out in the event of excessive pressure. It also features Buna seals, made of a highly effective sealing compound, which protect the valve from leakage and failure.
