SWITCH BOX 6-FUNCTION ILLUMINATED-ON

6391106
+ Tap or click image to enlarge
PRE-WIRED SWITCH BOX 6-FUNCTION ILLUMINATED-ON
$76.99 $123.18
SKU 6391106

Product Details

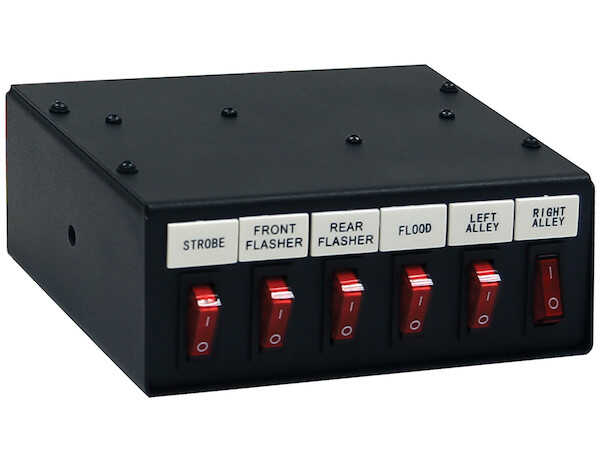

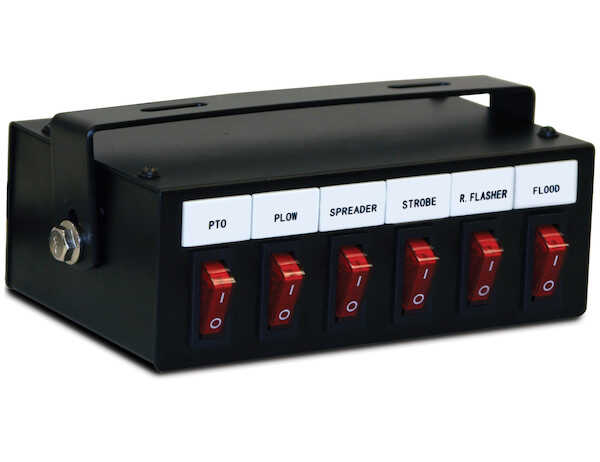

SWITCH BOX 6-FUNCTION ILLUMINATED-ON

The 6391106 switch box contains 6 switched circuits. SW1 is isolated by a 40A relay and protected by a 40A breaker. When SW1 is activated, the relay will energize. SW2/SW3/SW4/SW5/SW6 are all directly switched and each protected by a 20A fuse on the rear of the box.

All switch labels will be illuminated when ignition is on.

Specifications

  • 6-Function Switch Box
  • Illuminated Red Rocker Switches
  • 14 Interchangeable Snap-in Backlit Function Nameplates
  • Pre-Wired w/24" Lead
  • (5) 20 Amp / 12 VDC and (1) 40 Amp / 12 VDC Fuse, Relay and Circuit Breaker
  • Black Powder Aluminum Box (6.125"L x 3.875" W x 2.25"T) w/ Adj. Mounting Bracket

Shipping

Warranty

More Information Visit Buyers Products
