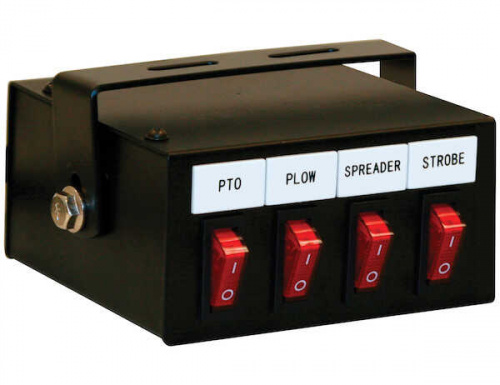

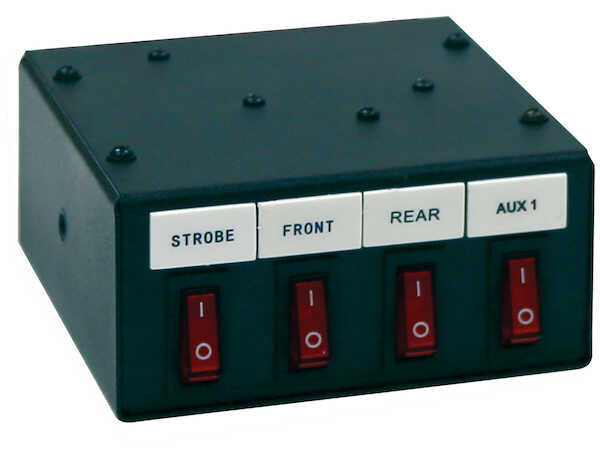

SWITCH BOX 4-FUNCTION ILLUMINATED-ON

SWITCH BOX 4-FUNCTION ILLUMINATED-ON
+ Tap or click image to enlarge
SWITCH BOX 4-FUNCTION ILLUMINATED-ON
$68.33 $109.32
SKU 6391104

Product Details

SWITCH BOX 4-FUNCTION ILLUMINATED-ON

In-Cab Electric Controls, Light Bars and Strobes, PTOs, Snow Plows

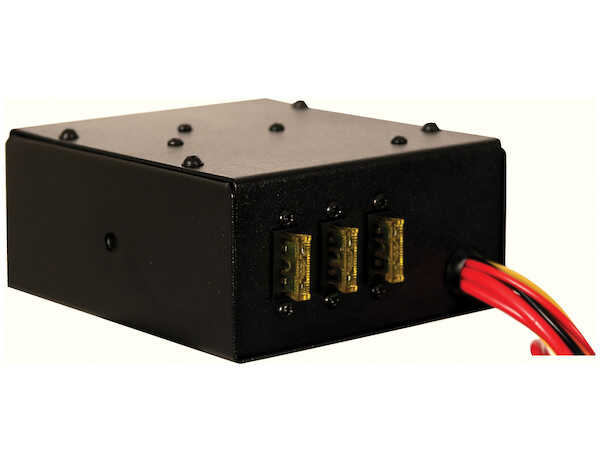

The 6391104 switch box contains 4 switched circuits. SW1 is isolated by a 40A relay and protected by a 40A breaker. When SW1 is activated, the relay will energize. SW2/SW3/SW4 are all directly switched and each protected by a 20A fuse on the rear of the box. All switche labels will be illuminated when ignition is on.

Specifications

  • 4-Function Switch Box
  • Illuminated Red Rocker Switches
  • 14 Interchangeable Snap-in Backlit Function Nameplates
  • Pre-Wired w/24" Lead
  • (3) 20 Amp / 12 VDC and (1) 40 Amp / 12 VDC Fuse, Relay and Circuit Breaker
  • Black Powder Coated Steel Box (4.25"L x 3.875" W x 2.25"T) w/ Adj. Mounting Bracket

Shipping

Warranty

More Information Visit Buyers Products
