BULLDOG WINCH BDG15002

Product Details

SPECIAL ORDER - CALL BEFORE ORDERING

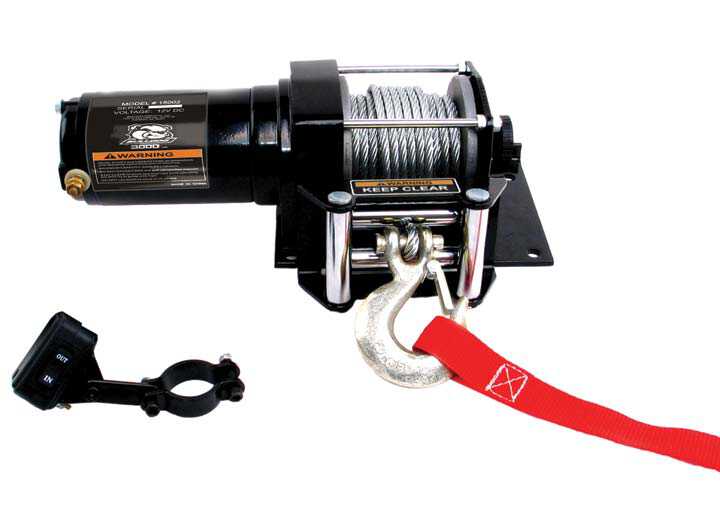

3000LB ATV WINCH WITH MINI-ROCKER SWITCH, MOUNTING CHANNEL, ROLLER FAIRLEAD

Part# 15002

• Rated Line Pull:
  3,000lbs
  (1361kgs)
• Motor:
  12V DC 1.2hp (0.9kW)
  Permanent Magnet
• Control:
  Handlebar mounted
  mini-rocker switch
• Gear Train:
  Planetary
• Gear Ratio:
  153:1
• Clutch:
  Freespooling
• Brake:
  Automatic Load Hold
• Wire Rope Dia x L:
  3/16" x 40'
  (5mm x 12.2m)
• Drum Dia x L:
  1.25" x 2.83"
  (31.75mm x 71.88mm)
• Battery Leads:
  8ga x 6'
  (3.2mm x 1.83m)
• Overall Dimensions
  (L x W x H):
  11.8" x 4.3" x 4.1"
  (299.7 x 109.2 x 104.1mm)
• Mounting Bolt Pattern:
  3.15" (80mm) on center
• Weight:
  N.W. 20.2 lbs.
  (9.2kgs)
• 2 Year Limited Warranty

Recommended for Maximum Performance:

• Snatch block/pulley block to double line for loads over 1500lbs
