Muncie Overspeed Device

Product Details

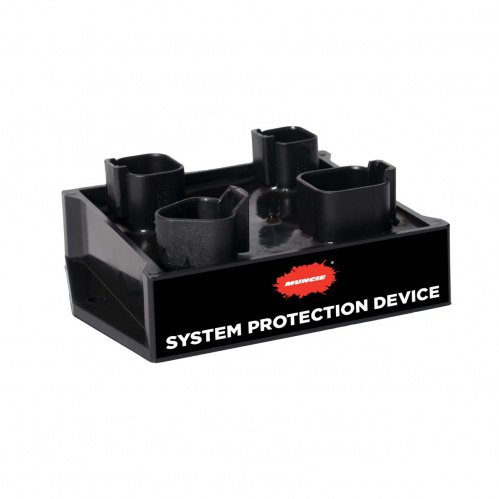

SPD-2001A — Standard kit Includes module, I/O harness, and tap to program harness

KEY FEATURES

• Senses input from the truck’s speedometer or RPM signal and automatically disengage a clutch pump or PTO coil if the threshold is exceeded.

• Sealed components are resistant to tampering and can be mounted in the cab or engine compartments.

• Easily add safety interlocks in order to interrupt the power operation during an overspeed condition or if a limit switch is activated. Switches are not included with the unit.

• Plug and play option available for Class 1-6 chassis equipped with OBD II port, enabling module to directly sense MPH or RPM from the chassis.

• Solid state design incorporates ease of programming and does not require any special tools.

• Module is compatible with 12 V or 24 V systems.

• Retrofit kit available to replace SPD-1001D module to SPD-2000 module.

• Clutch pack PTO application compatibilities.

Max Output: PTO or Clutch Coil — 5 Amps

• Max Output: Indicator Light — 5 Amps

• Operating Temperature Range: -40o C to 85o C (-40o F to 185o F)

• Operating Voltage Range: 7–30 V

• Accept RPM or MPH sinusoidal or square wave (1 Hz to 10 Khz)

• Overcurrent protection
