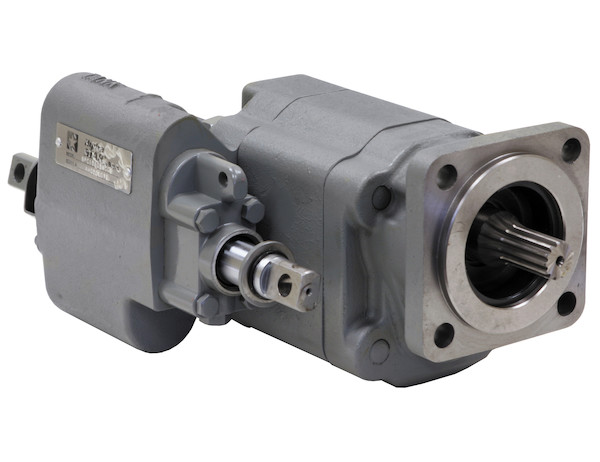

DIRECT MOUNT HYDRAULIC PUMP WITH COUNTERCLOCKWISE ROTATION

Name: DIRECT MOUNT HYDRAULIC PUMP WITH COUNTERCLOCKWISE ROTATION
Brand: BUYERS
SKU: C1010DMCCW
Price: 484.71 USD
Availability: InStock

+ Tap or click image to enlarge

DIRECT MOUNT HYDRAULIC PUMP

$484.71 $775.54

SKU C1010DMCCW

Product Details

Direct Mount Hydraulic Pump With CounterClockwise Rotation And 2-1/2 Inch Dia. Gear

Displacement 6 in.³/r

Displacement 25 GPM

Gear Width 2.500 "

Input Mount Type Integral Bracket

Material Cast Iron

Maximum Rotations Per Minute (RPM) 2000 RPM

Mount Type SAE B 4 Bolt

Pilot Diameter 4.00 "

Shaft Size 7/8-13

Shaft Type Splined

Ports (Rear/Side) Rear

Inlet Port Size 1 1/2 NPT

Maximum Pressure 2500 PSI

Direct Or Remote Mount Direct Mount

Outlet Port Size 1 NPT

Rotation Counterclockwise

Gear Size 2.5 "

Flow At 600 RPM 13 GPM

Flow At 1000 RPM 25 GPM

Flow At 1800 RPM 46 GPM

Flow At 900 RPM 21 GPM

Flow At 1200 RPM 33 GPM

Flow At 1500 RPM 37.5 GPM

Rear Port Size 1 NPT

Suction Port Size 1 1/2 NPT

Shipping

Warranty

Buyers Products warrants all products and hardware manufactured, and/or distributed by it (except those specified) to be free from defects in material and workmanship for a period of one (1) year from date of shipment. Parts must be properly installed and used under normal conditions. Any product which has been altered, including modification, misuse, accident, or lack of maintenance will not be considered under warranty. Normal wear is excluded. The sole responsibility of Buyers Products under this warranty is limited to repairing or replacing any part or part which are returned , prepaid, and are found to be defective by Buyers Products. Authorization from Buyers Products must be obtained before returning any part. No charges for transportation or labor performed on Buyers’ products will be allowed under this warranty.
