H9 HEADLAMP BULB SERVICE KIT

38809
+ Tap or click image to enlarge

Fisher Genuine Parts

H9 HEADLAMP BULB SERVICE KIT
$16.65 $20.81
SKU 38809

Product Details

H9 HEADLAMP BULB SERVICE KIT

How To Use

1. Remove the rear cover from the light housing by unscrewing the screws and sliding the rear cover off the housing. 2. Unplug the wire connector from the back of the halogen light source. 3. Using the finger tabs or the base of the light source, turn counterclockwise and remove the light source from the housing. Set it aside for proper disposal after installation is complete. 4. Verify the replacement light source is the correct voltage, wattage, and style (H9, H11, or H13). 5. Without touching the bulb, pick up a replacement halogen light source by the base, insert into the light housing making sure the keys are aligned with the slots as shown below, and turn the light source clockwise until tight. 6. Reconnect the wire connector to the back of the light source. 7. Replace the rear cover using the screws previously removed in Step 1.

Shipping

Warranty

Western Products warrants accessories, service parts, and components purchased separately for a period of one (1) year after original purchase to be free from defects in material and workmanship.

Additional items you might be interested in

38811
H11 HEADLAMP BULB SERVICE KIT
$16.65 $20.81
SKU 38811
38803

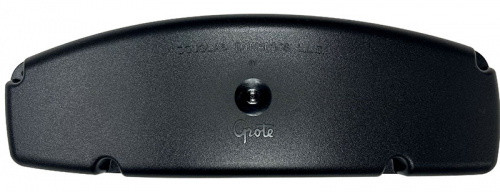

HEADLIGHT COVER KIT H9/H11 PS
